Ayuda en error de interfaz grafica Matlab
Publicado por Dionisio (12 intervenciones) el 05/04/2019 00:42:16

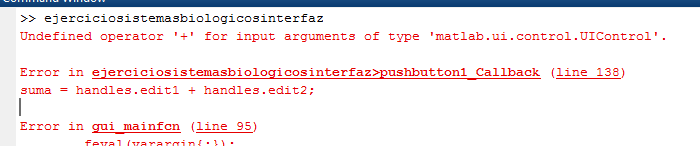

Estoy realizando una interfaz grafica muy sencilla y me muestra el error de la imagen, me marca como error el signo +.
Este es el codigo:
Este es el codigo:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
function varargout = ejerciciosistemasbiologicosinterfaz(varargin)
% EJERCICIOSISTEMASBIOLOGICOSINTERFAZ MATLAB code for ejerciciosistemasbiologicosinterfaz.fig
% EJERCICIOSISTEMASBIOLOGICOSINTERFAZ, by itself, creates a new EJERCICIOSISTEMASBIOLOGICOSINTERFAZ or raises the existing
% singleton*.
%
% H = EJERCICIOSISTEMASBIOLOGICOSINTERFAZ returns the handle to a new EJERCICIOSISTEMASBIOLOGICOSINTERFAZ or the handle to
% the existing singleton*.
%
% EJERCICIOSISTEMASBIOLOGICOSINTERFAZ('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in EJERCICIOSISTEMASBIOLOGICOSINTERFAZ.M with the given input arguments.
%
% EJERCICIOSISTEMASBIOLOGICOSINTERFAZ('Property','Value',...) creates a new EJERCICIOSISTEMASBIOLOGICOSINTERFAZ or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before ejerciciosistemasbiologicosinterfaz_OpeningFcn gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to ejerciciosistemasbiologicosinterfaz_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help ejerciciosistemasbiologicosinterfaz
% Last Modified by GUIDE v2.5 04-Apr-2019 16:00:46
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @ejerciciosistemasbiologicosinterfaz_OpeningFcn, ...
'gui_OutputFcn', @ejerciciosistemasbiologicosinterfaz_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before ejerciciosistemasbiologicosinterfaz is made visible.
function ejerciciosistemasbiologicosinterfaz_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to ejerciciosistemasbiologicosinterfaz (see VARARGIN)
% Choose default command line output for ejerciciosistemasbiologicosinterfaz
handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
% UIWAIT makes ejerciciosistemasbiologicosinterfaz wait for user response (see UIRESUME)
% uiwait(handles.figure1);
% --- Outputs from this function are returned to the command line.
function varargout = ejerciciosistemasbiologicosinterfaz_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Get default command line output from handles structure
varargout{1} = handles.output;
function edit1_Callback(hObject, eventdata, handles)
Val = str2double(get(hObject, 'String'));
if isnan (Val)
set (hObject, 'String', 0);
errordlg('Inggresa un numero por favor','Error');
end
handles.edit1 = Val;
guidata(hObject,handles)
% hObject handle to edit1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of edit1 as text
% str2double(get(hObject,'String')) returns contents of edit1 as a double
% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject handle to edit1 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
function edit2_Callback(hObject, eventdata, handles)
Val = str2double(get(hObject, 'String'));
if isnan (Val)
set (hObject, 'String', 0);
errordlg('Inggresa un numero por favor','Error');
end
handles.edit1 = Val;
guidata(hObject,handles)
% hObject handle to edit2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Hints: get(hObject,'String') returns contents of edit2 as text
% str2double(get(hObject,'String')) returns contents of edit2 as a double
% --- Executes during object creation, after setting all properties.
function edit2_CreateFcn(hObject, eventdata, handles)
% hObject handle to edit2 (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called
% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
set(hObject,'BackgroundColor','white');
end
% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
suma = handles.edit1 + handles.edit2;
set (handles.suma, 'String', suma);
