Matlab - Ayuda con proyecto de procesamiento de señales de audio en Matlab

function varargout = punto_5(varargin)

% PUNTO_5 MATLAB code for punto_5.fig

%      PUNTO_5, by itself, creates a new PUNTO_5 or raises the existing

%      singleton*.

%

%      H = PUNTO_5 returns the handle to a new PUNTO_5 or the handle to

%      the existing singleton*.

%

%      PUNTO_5('CALLBACK',hObject,eventData,handles,...) calls the local

%      function named CALLBACK in PUNTO_5.M with the given input arguments.

%

%      PUNTO_5('Property','Value',...) creates a new PUNTO_5 or raises the

%      existing singleton*.  Starting from the left, property value pairs are

%      applied to the GUI before punto_5_OpeningFcn gets called.  An

%      unrecognized property name or invalid value makes property application

%      stop.  All inputs are passed to punto_5_OpeningFcn via varargin.

%

%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one

%      instance to run (singleton)".

%

% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help punto_5

% Last Modified by GUIDE v2.5 22-Nov-2019 21:06:49

% Begin initialization code - DO NOT EDIT

gui_Singleton = 1;

gui_State = struct('gui_Name',       mfilename, ...

                   'gui_Singleton',  gui_Singleton, ...

                   'gui_OpeningFcn', @punto_5_OpeningFcn, ...

                   'gui_OutputFcn',  @punto_5_OutputFcn, ...

                   'gui_LayoutFcn',  [] , ...

                   'gui_Callback',   []);

if nargin && ischar(varargin{1})

    gui_State.gui_Callback = str2func(varargin{1});

end

if nargout

    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});

else

    gui_mainfcn(gui_State, varargin{:});

end

% End initialization code - DO NOT EDIT

% --- Executes just before punto_5 is made visible.

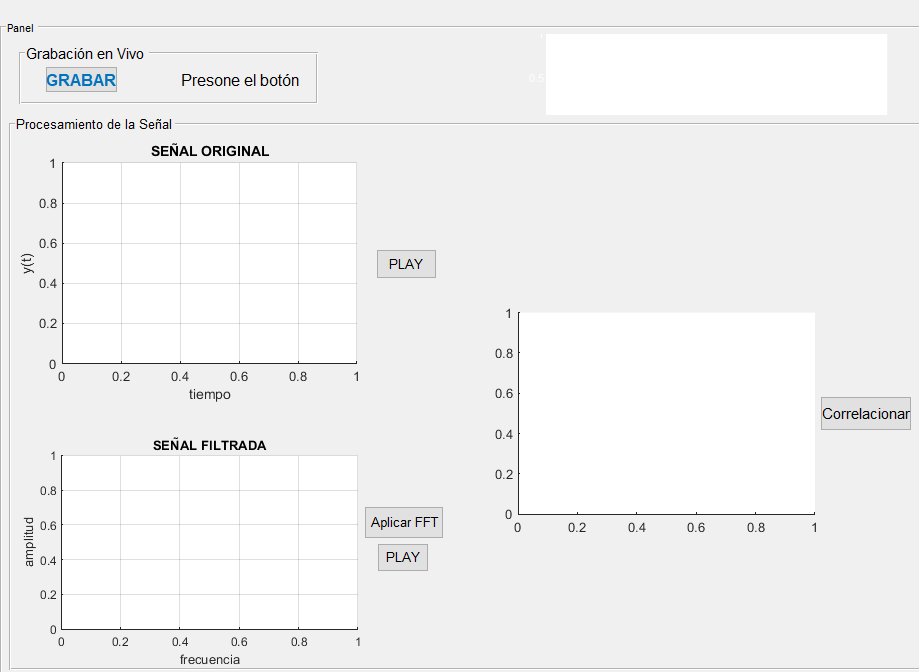

function punto_5_OpeningFcn(hObject, eventdata, handles, varargin)

axes(handles.axes1);xlabel('tiempo'); ylabel('y(t)');title('SEÑAL ORIGINAL');grid on;

axes(handles.axes3);xlabel('frecuencia'); ylabel('amplitud');title('SEÑAL FILTRADA'); grid on;

%%----------------------PARA LOGO---------------------------%%

%axes(handles.axes4)

%matlabImage = imread('C:\Users\Daniel\Documents\MATLAB\proyecto_f\proyecto_DSP/lauao.png');

%image(matlabImage)

%axis off

%axis image

handles.output = hObject;

% Update handles structure

guidata(hObject, handles);

% UIWAIT makes punto_5 wait for user response (see UIRESUME)

% uiwait(handles.figure1);

% --- Outputs from this function are returned to the command line.

function varargout = punto_5_OutputFcn(hObject, eventdata, handles)

% varargout  cell array for returning output args (see VARARGOUT);

% hObject    handle to figure

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure

varargout{1} = handles.output;

% --- Executes on button press in pushbutton1.

function grabar_en_vivo_Callback(hObject, eventdata, handles)

recObj = audiorecorder;

% disp('Start speaking.'); recordblocking(recObj, 5); disp('End of Recording.');

set(handles.text1, 'String', 'hable ahora');

% play(recObj);

% audi = getaudiodata(recObj);

% plot(audi);

% hObject    handle to pushbutton1 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

function edit1_Callback(hObject, eventdata, handles)

% hObject    handle to edit1 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text

%        str2double(get(hObject,'String')) returns contents of edit1 as a double

% --- Executes during object creation, after setting all properties.

function edit1_CreateFcn(hObject, eventdata, handles)

% hObject    handle to edit1 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.

%       See ISPC and COMPUTER.

if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))

    set(hObject,'BackgroundColor','white');

end

%%--------------------------BOTON GRABAR------------------------------%%

function pushbutton2_Callback(hObject, eventdata, handles)

Fs=44100;

duracion=6;

recObj = audiorecorder(Fs,16,1);

set(handles.text3, 'ForegroundColor','red'); % cambia color texto

set(handles.text3, 'String', 'GRABANDO...'); % primer texto despues de presionar el boton

recordblocking(recObj, duracion); % grabando audio microfono

set(handles.text3, 'String', 'FIN GRABACIÓN'); % segundo texto despues de presionar el boton

audi = getaudiodata(recObj);

audiowrite('sonido_grabado.wav',audi, Fs );

axes(handles.axes1);xlabel('tiempo'); ylabel('y(t)');title('SEÑAL ORIGINAL');grid on;

plot(audi);

%%------------------------------BOTON CERRAR------------------------------%%

% --- Executes on button press in pushbutton3.

function pushbutton3_Callback(hObject, eventdata, handles)

close punto_5;

%%-----------------------BOTON PLAY SEÑAL ORIGINAL---------------------------%%

% --- Executes on button press in pushbutton4.

function pushbutton4_Callback(hObject, eventdata, handles)

[z1,Fs] = audioread('sonido_grabado.wav');

soundsc(z1,Fs);

plot(handles.axes1,z1);

axes(handles.axes1);;xlabel('tiempo'); ylabel('y(t)');title('SEÑAL ORIGINAL');grid on;

%%-----------------------BOTON FFT---------------------------%%

function pushbutton5_Callback(hObject, eventdata, handles)

[z2,Fs] = audioread('sonido_grabado.wav');

info = audioinfo('sonido_grabado.wav');

plot(handles.axes3,abs(fft(z2)));

axes(handles.axes3);;xlabel('frecuencia'); ylabel('amplitud');title('SEÑAL CON FFT'); grid on;

%%-----------------------BOTON PLAY SEÑAL FFT---------------------------%%

function pushbutton6_Callback(hObject, eventdata, handles)

[z2,Fs] = audioread('sonido_grabado.wav');

info = audioinfo('sonido_grabado.wav');

nBits = 16;

soundsc(z2,Fs,nBits);

%%-----------------------BOTON CORRELACIONAR---------------------------%%

function pushbutton7_Callback(hObject, eventdata, handles)

[z2,Fs] = audioread('sonido_grabado.wav');

info = audioinfo('sonido_grabado.wav');

[z3,Fs1] = audioread('ID_audiencia.wav');

info3 = audioinfo('ID_audiencia.wav');

c = xcorr(z2,z3);

cn=c./max(c);

plot(handles.axes5, cn);

axes(handles.axes5);xlabel('frecuencia'); ylabel('amplitud');title('SEÑAL CORRELACIONADA'); grid on;

valor_max=max(cn);

if valor_max ==1

set(handles.text15, 'String', '1 oyente');

else set(handles.text15, 'String', 'se putio');

end

% hObject    handle to pushbutton7 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% --- Executes on button press in togglebutton1.

function togglebutton1_Callback(hObject, eventdata, handles)

% hObject    handle to togglebutton1 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of togglebutton1

% --- Executes on button press in pushbutton8.

function pushbutton8_Callback(hObject, eventdata, handles)

% hObject    handle to pushbutton8 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% --------------------------------------------------------------------

function Untitled_2_Callback(hObject, eventdata, handles)

% hObject    handle to Untitled_2 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)

% --------------------------------------------------------------------

function Untitled_3_Callback(hObject, eventdata, handles)

% hObject    handle to Untitled_3 (see GCBO)

% eventdata  reserved - to be defined in a future version of MATLAB

% handles    structure with handles and user data (see GUIDATA)
