Crear un reporte en VB.net 2010 con Crystal Report

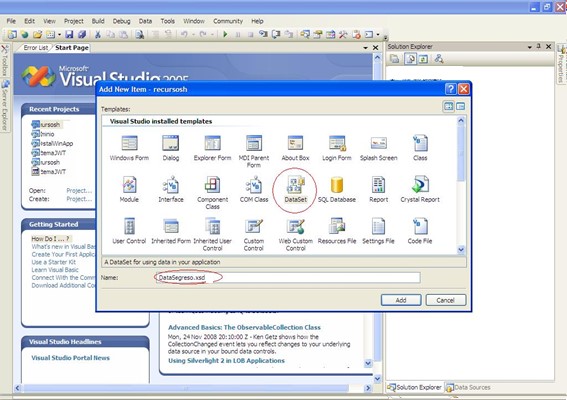

Crea un DATASET, presionar ADD

1

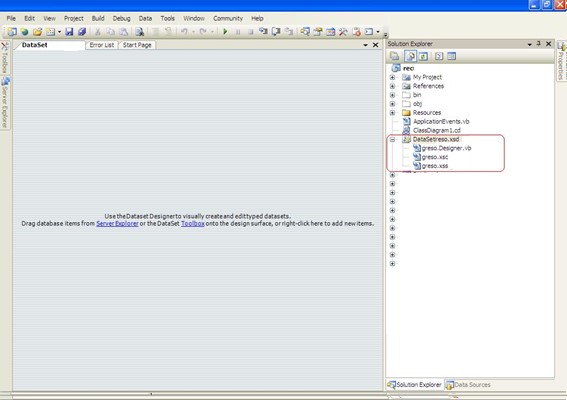

Creara el DATASET

2

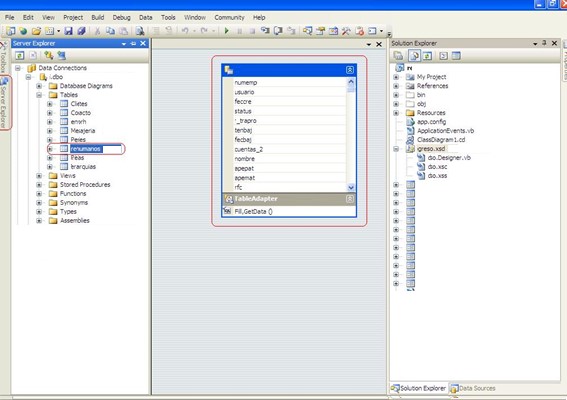

Seleccionar la table y arrastrarla para que realice la conexión

3

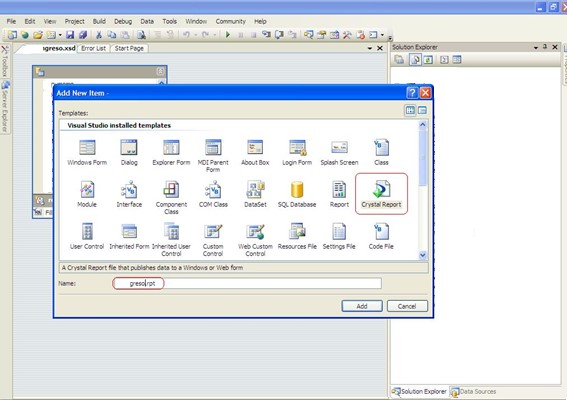

Adicionar CRYSTAL REPORT, presionar el botón ADD

4

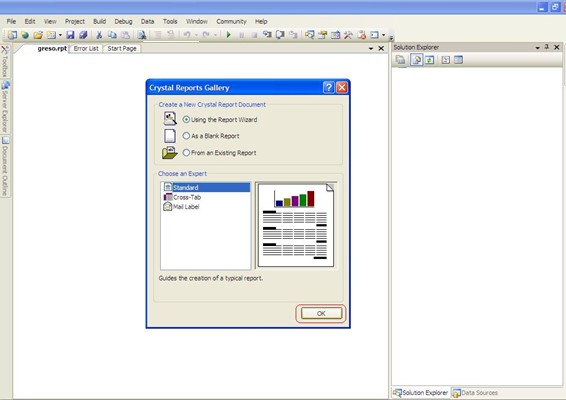

Deja USING THE REPORT WIZARD/STANDARD, presiona OK

5

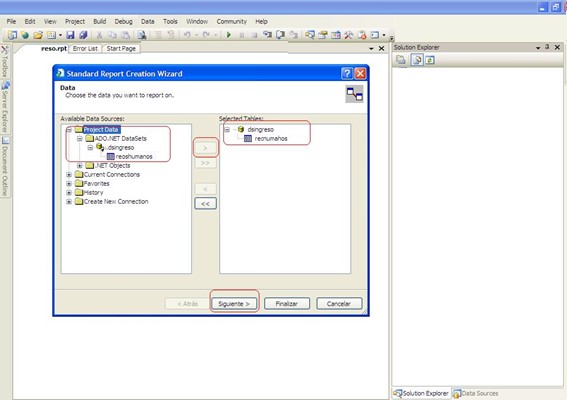

Se visualizara la pantalla del wizard, selecciona la table y pasarla a SELECTED TABLES, presionar SIGUIENTE

6

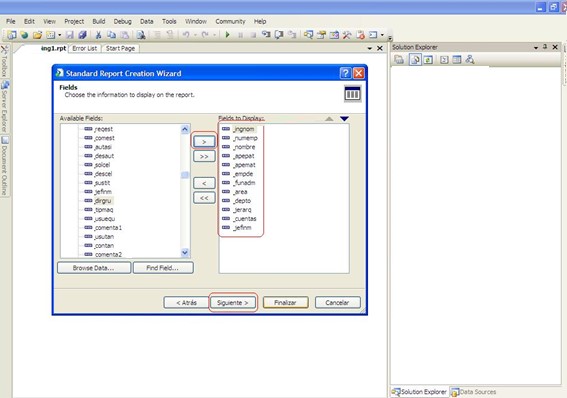

Seleccionar los campos que aparecerán en el reporte, presionar siguiente

7

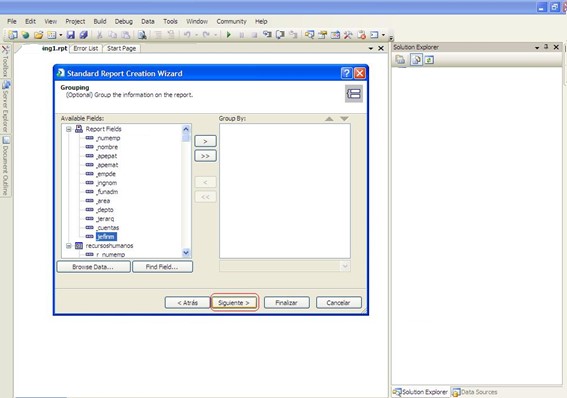

En caso de querer agruparlo seleccionar los campos, presionar siguiente

8

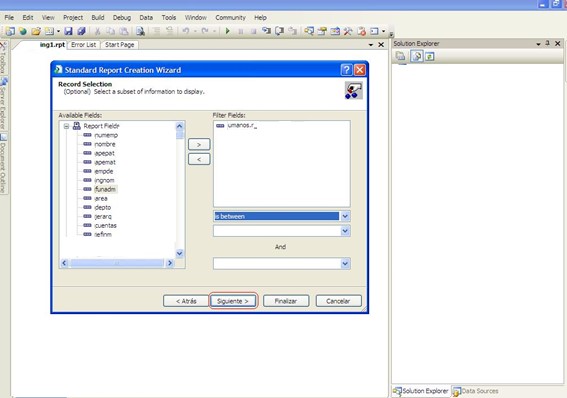

En caso de querer hacer una selección de campos con formula, presionar siguiente

9

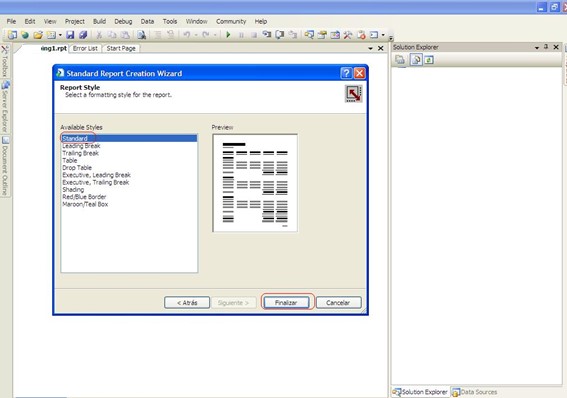

Seleccionar algún estilo para el reporte, presionar Finalizar

10

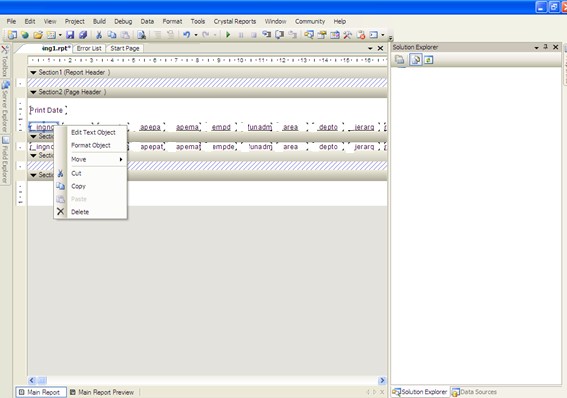

Por último acomodar los campos y titulo

11

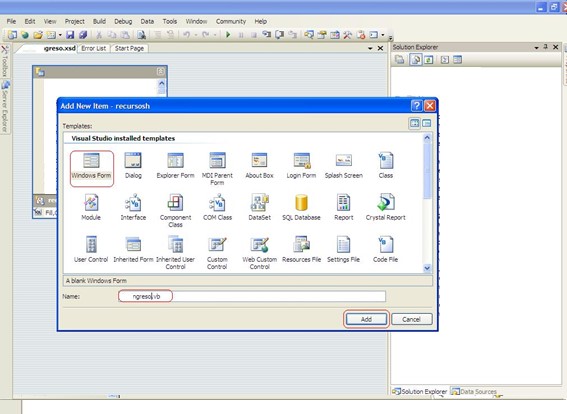

Crear un form donde llamaremos el reporte, presionar ADD

12

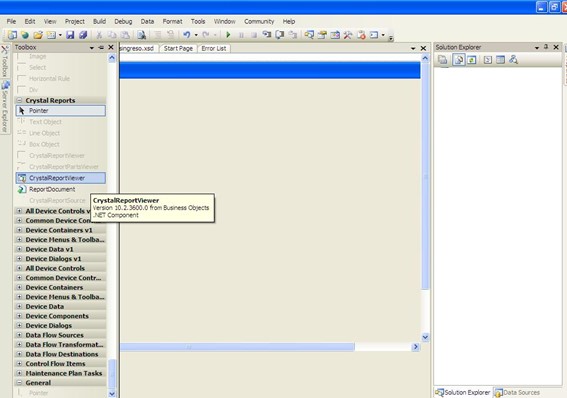

Arrastramos un CRYSTALREPORTVIEWER

13

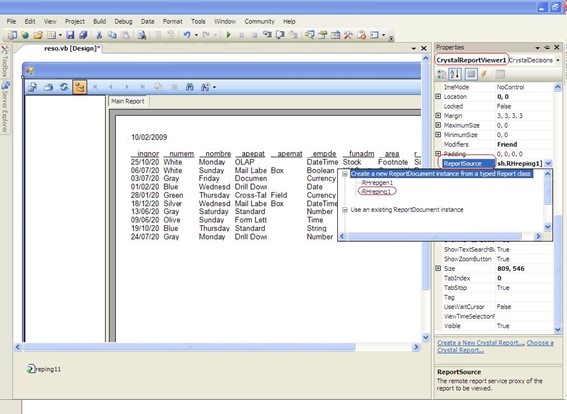

Seleccionamos las propiedades del CRYSTALREPORTVIEWER1 , en el REPORTSOURCE seleccionamos el reporte creado y creara un REPORTDOCUMENT

14

Dentro de la form que llama el reporte copiar el código:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Imports System.Data.SqlClient
Imports System.Data
Private Sub ingresos_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
	Cnn.open
	Try
		Dim Ds As New dsingresos
		Dim Da As New SqlClient.SqlDataAdapter("Select * From TABLA " & _
		"where FECHA_INGRESO >= '" & CAMPO_INGRESO.DateTimePicker11.Text & "' and FECHA_INGRESO <= '" & CAMPO_INGRESO.DateTimePicker22.Text & "' order by FECHA_INGRESO", Cnn)
		Da.Fill(Ds, "TABLA")
		'Mandar los datos al dataSet y muestralos
		'se tiene que crear forzosamente esta instancia para poder pasar
		'parametros...
		Dim Reporte As New NOMBRE_REPORTE
		Reporte.SetDataSource(Ds)
		Reporte.SummaryInfo.ReportTitle = "TITULO DE MI REPORTE " & Today
		Reporte.PrintOptions.PaperOrientation = CrystalDecisions.Shared.PaperOrientation.Landscape
		Me.CrystalReportViewer1.ReportSource = Reporte
	Catch ex As Exception
		MessageBox.Show(ex.ToString)
	End Try
End Sub
El código se copia en el load de la form, este código es para enviar un rango de fechas a imprimir.

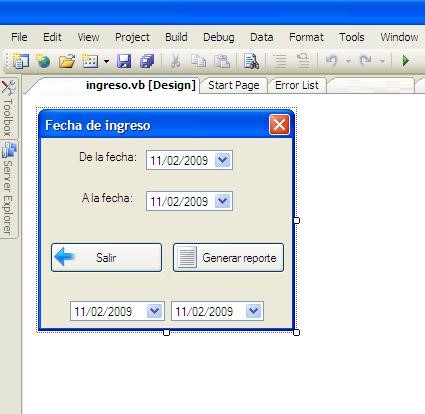

Se crea una siguiente form donde se podrán 4 DateTimePicker

15

En el botòn GENERAR REPORTE copiar el siguiente còdigo:
1
2
3
4
5
6
7
8
9
10
11
12
Imports system.DateTime
Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
	'Se asigna al 11 y 22 para que no cambie el fomato de fechas
	DateTimePicker11.Text = DateTimePicker1.Text
	DateTimePicker22.Text = DateTimePicker2.Text
	'Cambia formato de fechas para 11 y 22
	DateTimePicker11.CustomFormat = "yyyyMMdd"
	DateTimePicker11.Format = DateTimePickerFormat.Custom
	DateTimePicker22.CustomFormat = "yyyyMMdd"
	DateTimePicker22.Format = DateTimePickerFormat.Custom
	My.Forms.ingresos.ShowDialog()
End Sub

Requerimientos

VS 2010
estrellaestrellaestrellaestrellaestrella(3)

Actualizado el 30 de Mayo del 2016 (Publicado el 27 de Mayo del 2016)gráfica de visualizaciones de la versión: VS 2010
17.182 visualizaciones desde el 27 de Mayo del 2016
estrellaestrellaestrellaestrellaestrella
estrellaestrellaestrellaestrella
estrellaestrellaestrella
estrellaestrella
estrella

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
'Dentro de la form que llama el reporte copiar el código:
Imports System.Data.SqlClient
Imports System.Data
    Private Sub ingresos_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load
        Cnn.open
        Try
            Dim Ds As New dsingresos
            Dim Da As New SqlClient.SqlDataAdapter("Select * From TABLA " & _
            "where FECHA_INGRESO >= '" & CAMPO_INGRESO.DateTimePicker11.Text & "' and FECHA_INGRESO <= '" & CAMPO_INGRESO.DateTimePicker22.Text & "' order by FECHA_INGRESO", Cnn)
            Da.Fill(Ds, "TABLA")
            'Mandar los datos al dataSet y muestralos
            'se tiene que crear forzosamente esta instancia para poder pasar
            'parametros...
            Dim Reporte As New NOMBRE_REPORTE
            Reporte.SetDataSource(Ds)
            Reporte.SummaryInfo.ReportTitle = "TITULO DE MI REPORTE " & Today
            Reporte.PrintOptions.PaperOrientation = CrystalDecisions.Shared.PaperOrientation.Landscape
            Me.CrystalReportViewer1.ReportSource = Reporte
        Catch ex As Exception
            MessageBox.Show(ex.ToString)
        End Try
    End Sub
'El código se copia en el load de la form, este código es para enviar un rango de fechas a imprimir.


'En el botòn GENERAR REPORTE copiar el siguiente còdigo:
Imports system.DateTime
    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        'Se asigna al 11 y 22 para que no cambie el fomato de fechas
        DateTimePicker11.Text = DateTimePicker1.Text
        DateTimePicker22.Text = DateTimePicker2.Text
        'Cambia formato de fechas para 11 y 22
        DateTimePicker11.CustomFormat = "yyyyMMdd"
        DateTimePicker11.Format = DateTimePickerFormat.Custom
        DateTimePicker22.CustomFormat = "yyyyMMdd"
        DateTimePicker22.Format = DateTimePickerFormat.Custom
        My.Forms.ingresos.ShowDialog()
    End Sub
