#!/usr/bin/env python
# -*- coding: utf-8 -*-
from tkinter import *
from tkinter import ttk
from tkinter import messagebox, filedialog
import tkinter.scrolledtext as sct
import threading
import pyperclip
#import re
import time
import cv2
import os
import numpy as np
class app():
def __init__(self):
self.window = Tk()

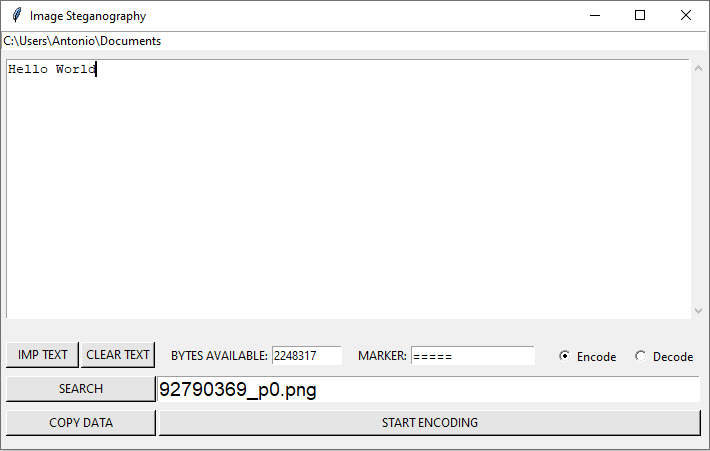

self.window.title("Image Steganography")
self.window.geometry("708x418")
self.backgr = "gray90"
self.imaname = StringVar()
self.current_dir = StringVar()
self.mode = StringVar()
self.mode.set("EN")
self.current_marker = StringVar()
self.current_marker.set("=====")
self.spaces = 5
self.nbytes = IntVar()
self.file_name = ""
self.running = False
self.entryDir = Entry(self.window,width=117,textvariable=self.current_dir)
self.entryDir.place(x=0,y=0)
self.textEntry = sct.ScrolledText(self.window,width=85,height=16)
self.textEntry.place(x=5,y=28)
Button(self.window,text="IMP TEXT",bg=self.backgr,width=9,command=self.init_copy).place(x=5,y=311)
Button(self.window,text="CLEAR TEXT",bg=self.backgr,command=self.clear).place(x=80,y=311)
self.rdbEncode = Radiobutton(self.window,text="Encode",variable=self.mode,value="EN",command=self.set_mode)
self.rdbEncode.place(x=553,y=313)
self.rdbDecode = Radiobutton(self.window,text="Decode",variable=self.mode,value="DE",command=self.set_mode)
self.rdbDecode.place(x=629,y=313)
Button(self.window,text="SEARCH",width=20,bg=self.backgr,command=self.open_file).place(x=5,y=345)
self.entImage = Entry(self.window,width=49,font=('arial',14),textvariable=self.imaname)
self.entImage.place(x=156,y=345)
self.btnStart = Button(self.window,text="START ENCODING",width=76,bg=self.backgr,command=self.init_task)
self.btnStart.place(x=158,y=379)
Label(self.window,text="BYTES AVAILABLE:").place(x=167,y=314)
self.byEnt = Entry(self.window,textvariable=self.nbytes,width=11)
self.byEnt.place(x=271,y=315)
Label(self.window,text="MARKER:").place(x=354,y=314)
self.markerEntry = Entry(self.window,textvariable=self.current_marker)
self.markerEntry.place(x=410,y=315)
self.invLabel = Label(self.window,fg="blue",width=98)
self.invLabel.place(x=6,y=289)
Button(self.window,text="COPY DATA",bg=self.backgr,width=20,command=self.copytext).place(x=5,y=379)
self.show_dir()
self.window.mainloop()
def copytext(self):
try:
if len(self.textEntry.get('1.0',END)) > 1:
pyperclip.copy(self.textEntry.get('1.0',END))
messagebox.showinfo("COPIED","Copied to clipboard.")
except Exception as e:
messagebox.showwarning("UNEXPECTED ERROR",str(e))
def show_dir(self):
self.current_dir.set(os.getcwd())
def set_mode(self):
self.btnStart.configure(text="START {}CODING".format(self.mode.get()))
def open_file(self):
try:
file = filedialog.askopenfilename(initialdir="/",title="SELECT FILE",
filetypes =(("PNG files","*.PNG") ,("TIFF files","*.TIFF")))
if file != "":
self.file_name = file.split("/")[-1]
os.chdir(("/").join(file.split("/")[:-1]))
self.show_dir()
self.imaname.set(self.file_name)
try:
self.image = cv2.imread(file)
self.n_bytes = self.image.shape[0] * self.image.shape[1] * 3 // 8
self.nbytes.set(self.n_bytes)
except:
messagebox.showwarning("ERROR","Can't open the file.")
except Exception as e:
messagebox.showwarning("LOADING ERROR",str(e))
def clear(self):
self.textEntry.delete('1.0',END)
def to_bin(self,data):
if isinstance(data, str):
return ''.join([ format(ord(i), "08b") for i in data ])
elif isinstance(data, bytes) or isinstance(data, np.ndarray):
return [ format(i, "08b") for i in data ]
elif isinstance(data, int) or isinstance(data, np.uint8):
return format(data, "08b")
else:
raise TypeError("Type not supported.")
def copy_text(self):
self.textEntry.delete('1.0',END)
self.ultima_copia = pyperclip.paste().strip()
while True:
time.sleep(0.1)
self.copia = pyperclip.paste().strip()
if self.copia != self.ultima_copia:
self.textEntry.insert(END,self.copia)
self.ultima_copia = self.copia
break
def init_copy(self):
messagebox.showinfo("IMPORT TEXT","""Select the text, right-click and
select 'copy' to import it.""")
t1 = threading.Thread(target=self.copy_text)
t1.start()
def encode(self):
#secret_data = re.sub("\[\d+\]","",self.textEntry.get('1.0',END))
secret_data = self.textEntry.get('1.0',END)
if len(secret_data) <= self.n_bytes:
new_file = filedialog.asksaveasfilename(initialdir="/",filetypes=[('png files','*.PNG'),
('tiff files','*.TIFF')],title="Save",defaultextension='.png')
ima_name = (new_file).split("/")[-1]
if new_file != "":
secret_data += self.current_marker.get() #"====="
data_index = 0
binary_secret_data = self.to_bin(secret_data)
data_len = len(binary_secret_data)
for row in self.image:
for pixel in row:
r, g, b = self.to_bin(pixel)
if data_index < data_len:
pixel[0] = int(r[:-1] + binary_secret_data[data_index], 2)
data_index += 1
if data_index < data_len:
pixel[1] = int(g[:-1] + binary_secret_data[data_index], 2)
data_index += 1
if data_index < data_len:
pixel[2] = int(b[:-1] + binary_secret_data[data_index], 2)
data_index += 1
if data_index >= data_len:
break
cv2.imwrite(new_file,self.image)
messagebox.showinfo("TASK COMPLETED","Created image: {}".format(ima_name))
else:
messagebox.showwarning("NO SPACE","Insufficient bytes, need bigger image or less data.")
self.invLabel.configure(text="")
self.running = False
def decode(self):
binary_data = ""
for row in self.image:
for pixel in row:
r, g, b = self.to_bin(pixel)
binary_data += r[-1]
binary_data += g[-1]
binary_data += b[-1]
all_bytes = [ binary_data[i: i+8] for i in range(0, len(binary_data), 8) ]
decoded_data = ""
for byte in all_bytes:
decoded_data += chr(int(byte, 2))
if decoded_data[-(self.spaces):] == self.current_marker.get():#"====="
break
self.clear()
if self.current_marker.get() in decoded_data:
self.clear()
self.textEntry.insert(END,decoded_data[:-(self.spaces)])
else:
messagebox.showwarning("NO DATA","Data not found.")
self.invLabel.configure(text="")
self.running = False
def init_task(self):
if self.current_marker.get() != "":
if self.file_name != "":
if self.mode.get()=="EN" and len(self.textEntry.get('1.0',END))>1 and self.running==False:
self.running = True
self.invLabel.configure(text="ENCODING...")
t = threading.Thread(target=self.encode)
t.start()
elif self.mode.get()=="DE" and self.running==False:
self.running = True
self.invLabel.configure(text="DECODING...")
t = threading.Thread(target=self.decode)
t.start()
else:
messagebox.showwarning("NO FILE","Select image file.")
else:
messagebox.showwarning("NO MARKER","A marker string is required.")
if __name__=="__main__":
app()
Repositorio en GitHub:
https://github.com/antonioam82/Steganography
Imagen de muestra:
https://github.com/antonioam82/Steganography/blob/main/INB_encoded.png
